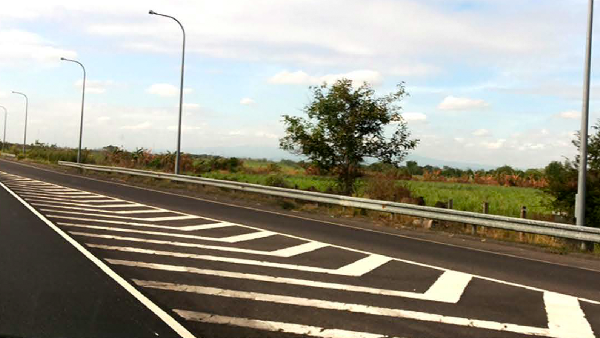

APPROACH MARKINGS TO ISLANDS AND OBSTRUCTIONS

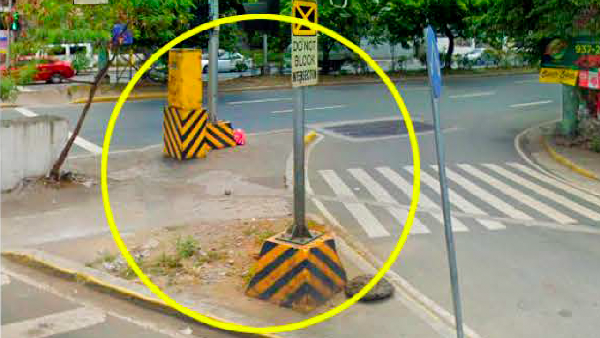

CHEVRON markings are often used to guide traffic into the right turning lanes separated by an island, such as a corner island at a signalized intersection.

RUMBLE STRIPS are thermoplastic lane marking designed to aid and provide motorist with visual, audio and motion warnings on the road . Rumble Strips are highly visible horizontal lines on the road that produce a humming sound and ample bumpy ride to the motorists when ran over.

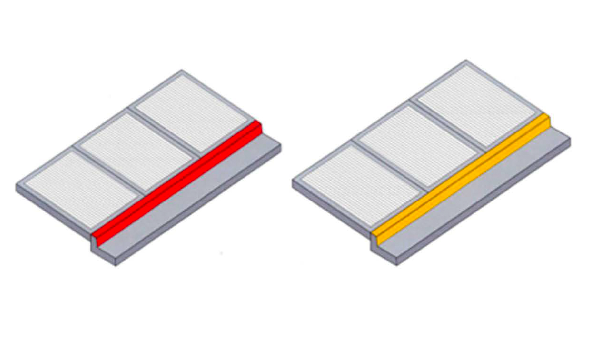

Curb Markings for Parking and Loading I Unloading Restrictions 81

RAILROAD CROSSING AHEAD

MOTORCYCLE LANES- lane al lated for motorcycle riders and can be shared by other vehicles. Riders are not allowed to stay on other lanes unless instructed by enforcers or the rider is turning into an intersection and must signal his/her intention within 100 meters.

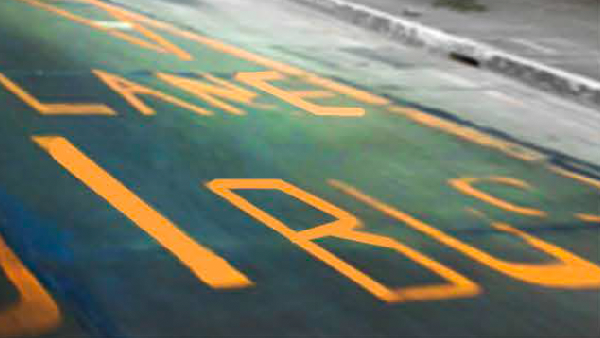

BUS LANE - designated lanes for buses. Bus drivers are not allowed to use other lanes exept when instructed by enforcers or when turning into an intersection.

FOR BICYCLES ONLY - a solid white line along either side of street.

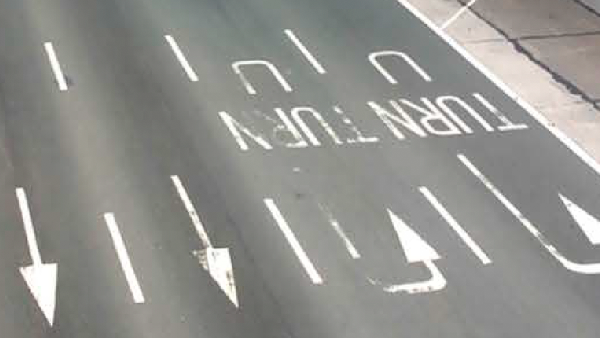

PAVEMENT ARROWS - used for lane control and in white color.

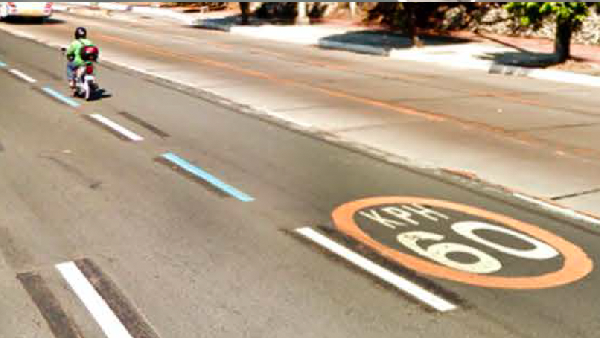

SPEED LIMIT AT 60KPH - a speed limit of pavement markings to supplement the speed limit posted on the road side.
